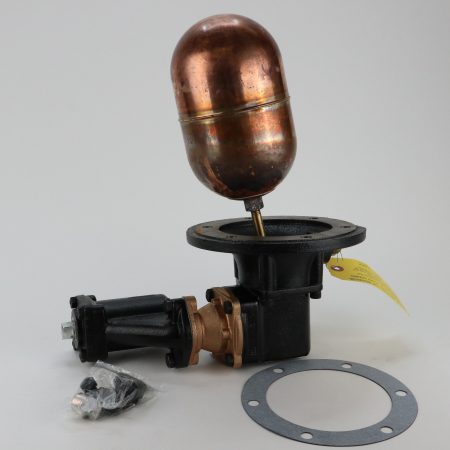

McDonnell & Miller Water Feeder

MAKE-UP WATER FEEDER FOR BOILER RECEIVER TANKS WITH 35 PSI MAX VESSEL PRESSURE, 3/4″ NPT CONNECTION, AND 5 3/4″ BOLT CIRCLE

Overview

For boiler receiver tanks, Direct mounting eliminates the need for equalizing connections
Proportional feed action, Mounting Flange – six 7⁄16″ (11.1mm) bolt holes on a 53⁄4″ (146mm) bolt circle
The soft seat provides a positive seal. Maximum water supply pressure 150 psi (10.5 kg/cm2)
Maximum inlet water temperature 120˚F (49˚C)
Maximum vessel pressure 35 psi (2.5 kg/cm2)
