Fireye Display Module

EP/EPD LCD DISPLAY MODULE

Overview

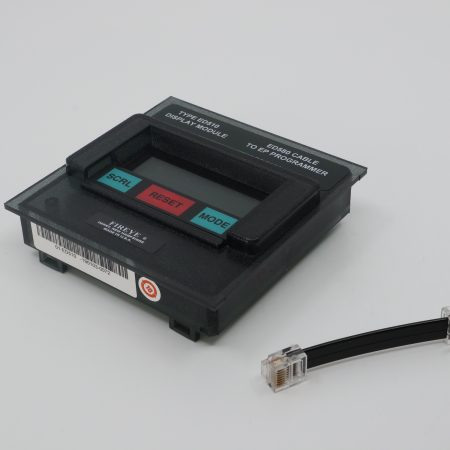

The ED510 Display Module is designed to operate with the FLAME-MONITOR Burner Management Control System using the EP and EPD style (remote mount only for EPD style) programmer
modules as well as the MicroM series of controls. The ED510 display module provides the following
features and capabilities:
• Two (2) line by sixteen (16) character backlit LCD display.
• Continuous display of current burner operating status, including first out annunciation in the
event of a lockout condition.
• Three (3) keys, tactile dome keypad to provide historical information about the burner, last six (6)
lockout conditions (with burner cycle and burner hour timestamp), assign messages associated
with the operation of the E300 expansion module, and diagnostic messages.
• Design mounts directly onto the front face of the EP-style programmers.
• RJ style connector for connection to the EP and EPD programmer.

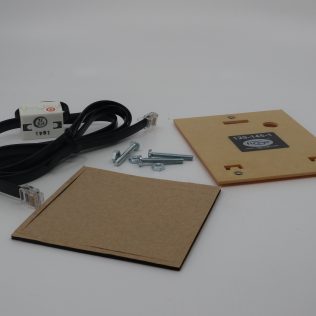

• Remote display capability with the EP and EPD style programmers and MicroM system using
standard DIN sized opening and remote mounting kit. Refer to Bulletin E-8002.
• Weatherproof housing (NEMA 4 using remote mounting kit 129-145-1, -2).
